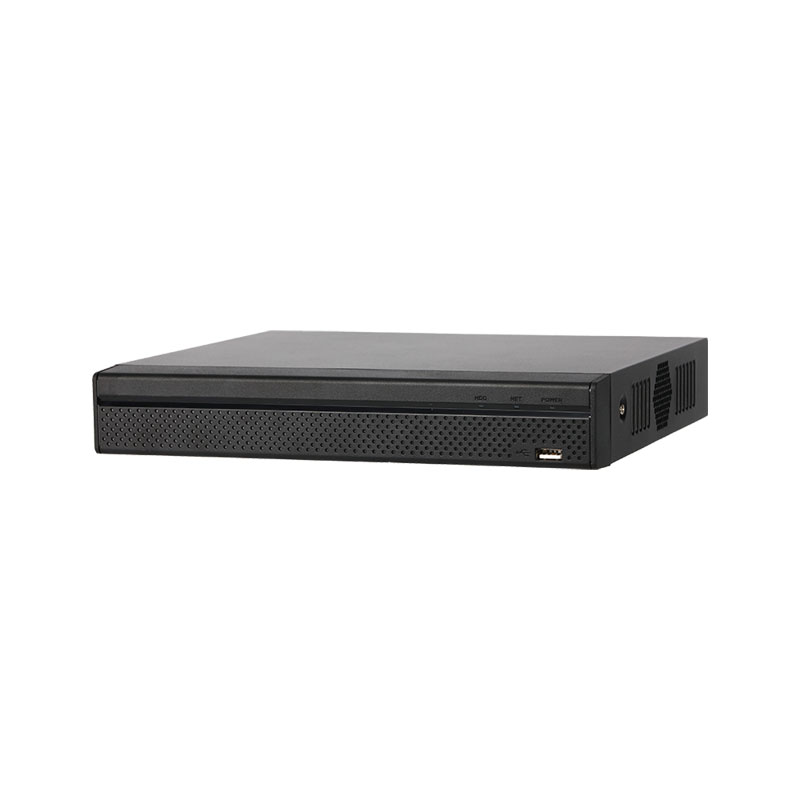

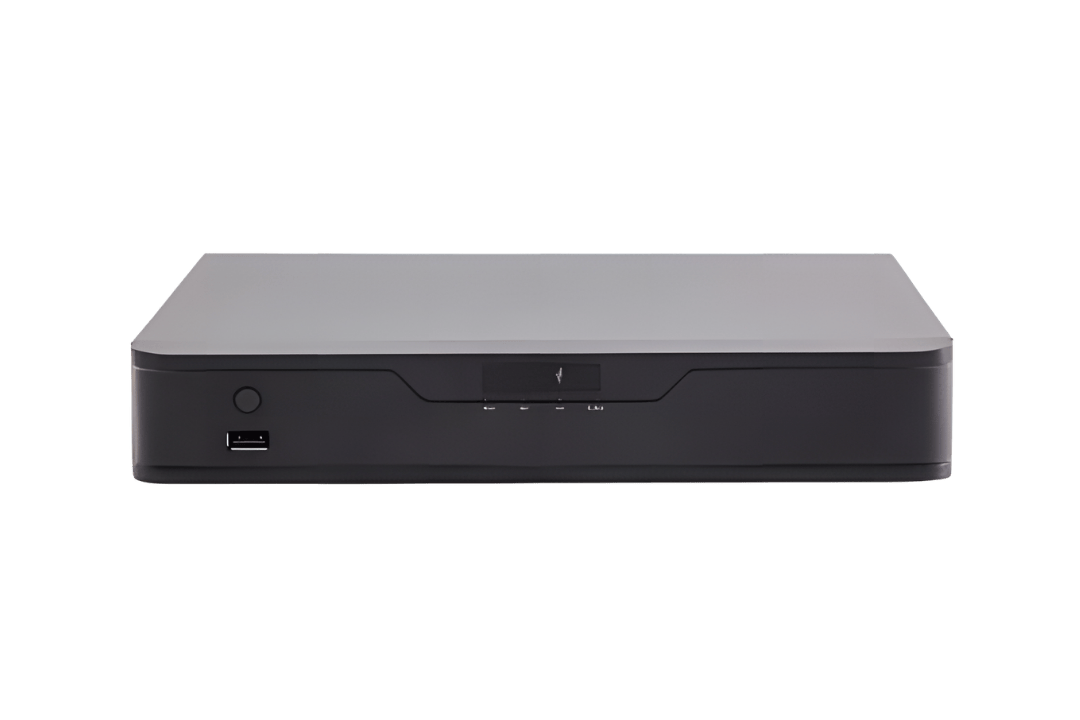

265 Compression + U-Code (Ultra 265)
Support 4 CH 8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF IPC input
Adopt standard H.265 / H.264 high profile compression format to get high-quality video at much lower bit rate
Plug & Play with 4/8 independent PoE network interfaces
3rd Party IP Camera Supported with ONVIF conformance
Support 1CH HDMI, 1CH VGA, HDMI at up to 4K (3840 x 2160) resolution
Up to 8MP resolution recording
Accurate retrieval, instant playback
1 SATA HDD, Up to 8TB
Support for P2P, UPnP, NTP, DHCP, PPPoE
Support for mobile client access

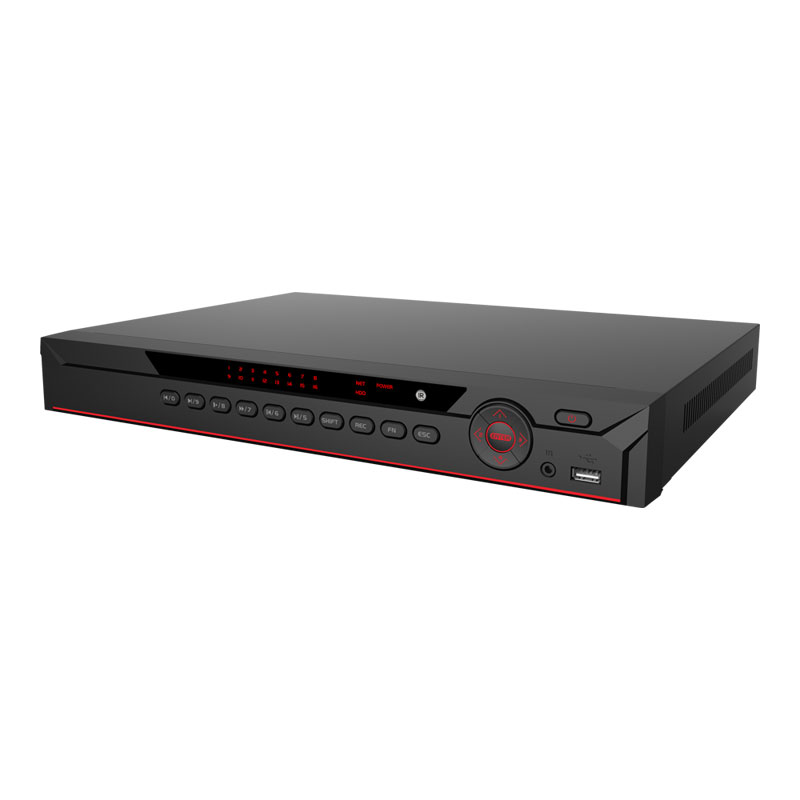

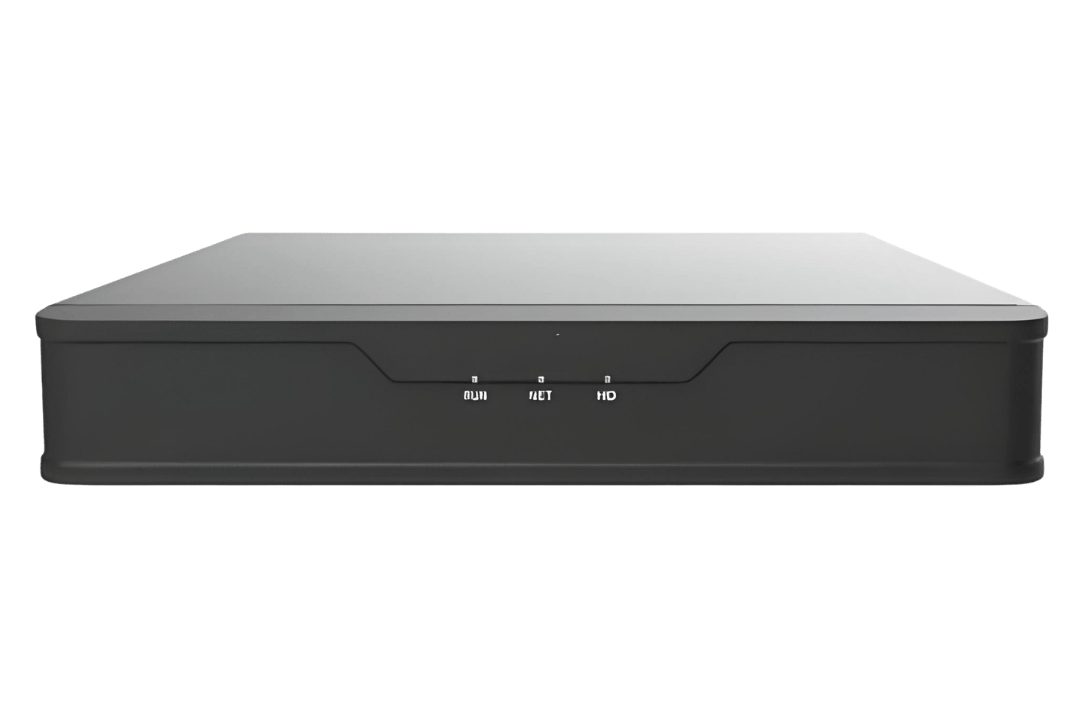

265 Compression + U-Code (Ultra 265)
Support 8 CH 8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF IPC input
Adopt standard H.265/H.264 high profile compression format to get high-quality video at much lower bit rate
Plug & Play with 4/8 independent PoE network interfaces
3rd Party IP Camera Supported with ONVIF conformance
Support 1CH HDMI, 1CH VGA, HDMI at up to 4K (3840 x 2160) resolution
Up to 8MP resolution recording
Accurate retrieval, instant playback
1 SATA HDD, Up to 8TB
Support for P2P, UPnP, NTP, DHCP, PPPoE
Support for mobile client access

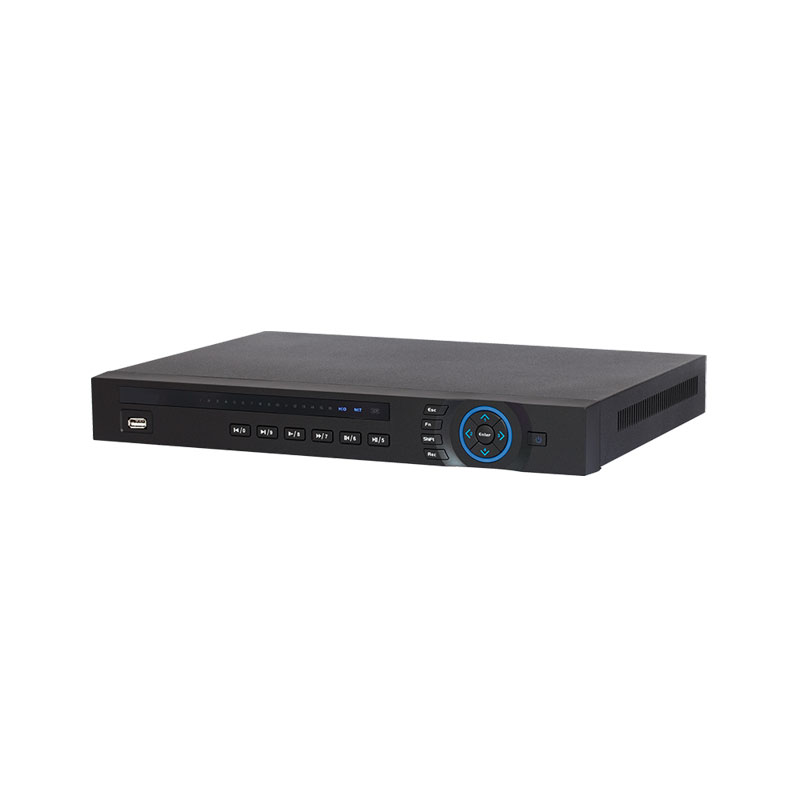

265 Compression + U-Code (Ultra 265)
Support 16 CH 12MP/8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF IPC input
Adopt standard H.265/H.264 high profile compression format to get high-quality video at much lower bit rate
Plug & Play with 16 independent PoE network interfaces
3rd Party IP Camera Supported with ONVIF conformance
Support 1CH HDMI, 1CH VGA, HDMI at up to 4K (3840 x 2160) resolution
Up to 12MP resolution recording
Accurate retrieval, instant playback
2 SATA HDD, Up to 8TB
Support for P2P, UPnP, NTP, DHCP, PPPoE
Support for mobile client access

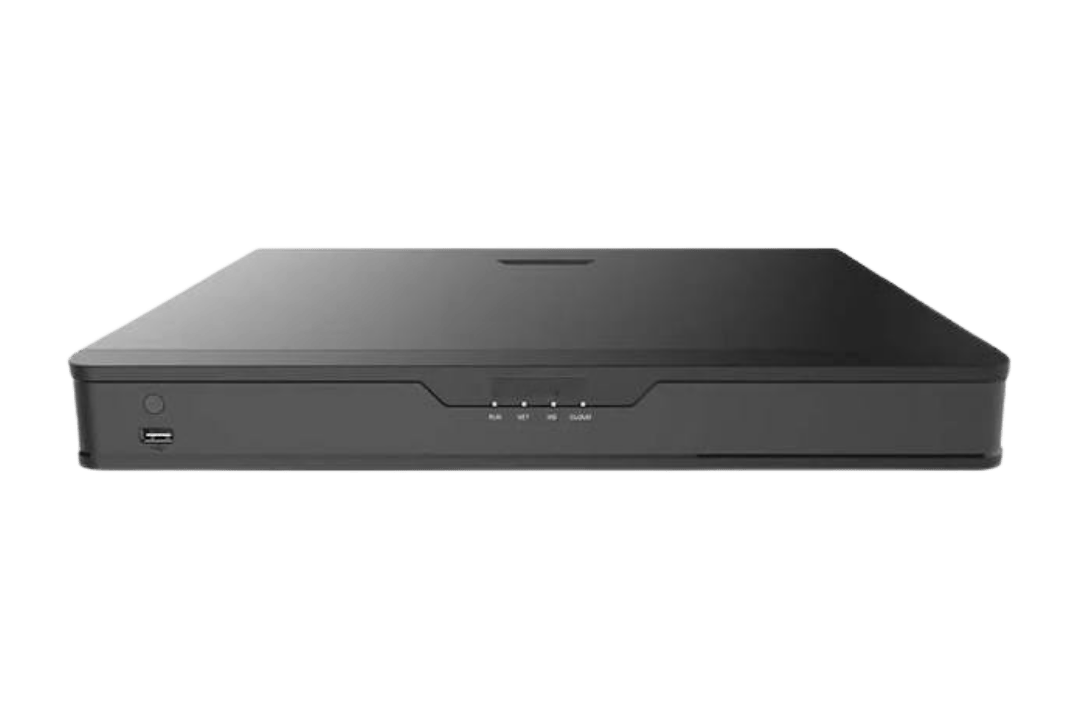

Support Ultra H.265/H.265/H.264 video formats
32-channel input
Third-party IP cameras supported with ONVIF conformance: Profile S, Profile G, Profile T
Support 2-ch HDMI, 1-ch VGA, HDMI2 at up to 4K(3840×2160) resolution
HDMI1/VGA and HDMI2 independent outputs provided
Up to 12 Megapixels resolution recording
4 SATA HDDs, Up to 8TB for each HDD
Various fisheye dewarping modes for live view and playback for both web interface and GUI
Support for 12V Power output
Plug & Play with up to 16 independent PoE network interfaces
ANR technology to enhance the storage reliability when the network is disconnected
Support cloud upgrade

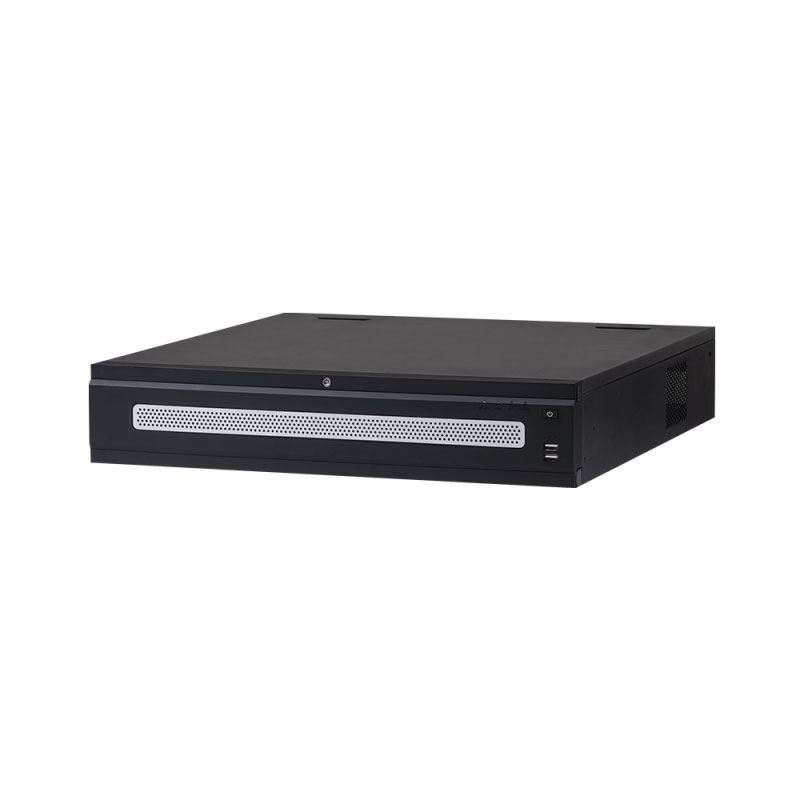

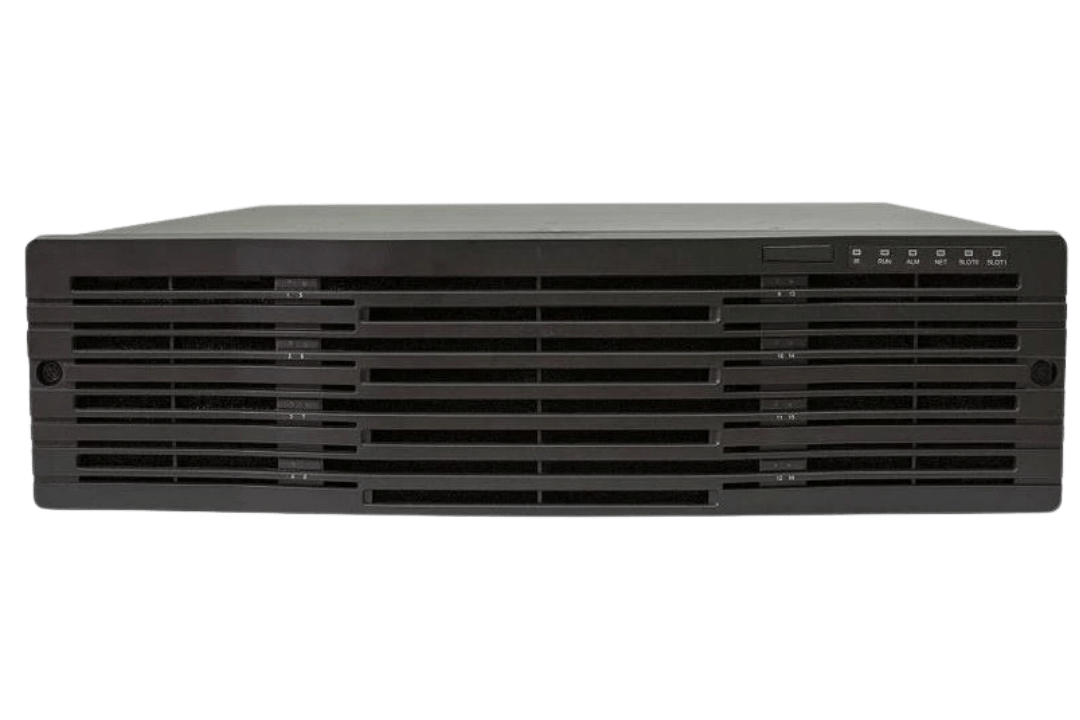

Support Ultra 265/H.265/H.264 video formats
128-channel input
Third-party IP cameras supported with ONVIF conformance: Profile S, Profile G, Profile C, Profile Q, Profile A, Profile T
Support 2-ch HDMI, 1-ch VGA, HDMI at up to 4K(3840×2160) resolution
HDMI1, HDMI2 and VGA independent outputs provided
Up to 12 Megapixels resolution recording
Redundant power supply optional
2 decoding cards optional, up to 12-ch HDMI
Support HDD hot swap with RAID 0, 1, 5, 6, 10 storage schemes configurable
16 SATA HDDs, up to 10TB for each HDD
Support 2 miniSAS Interfaces
Support 12V power output
ANR technology to enhance storage reliability when the network is disconnected
Support cloud upgrade

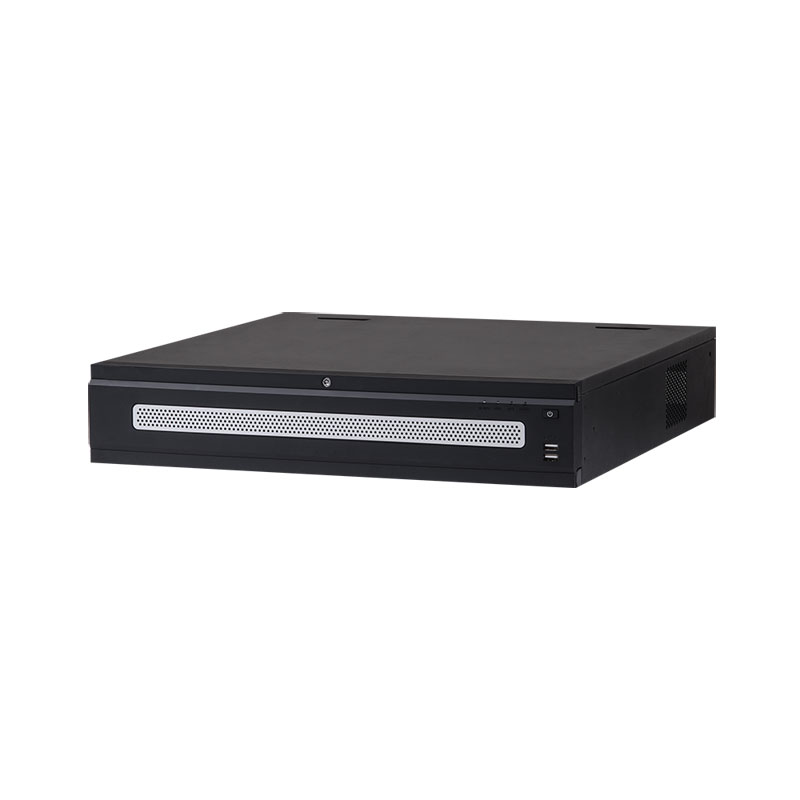

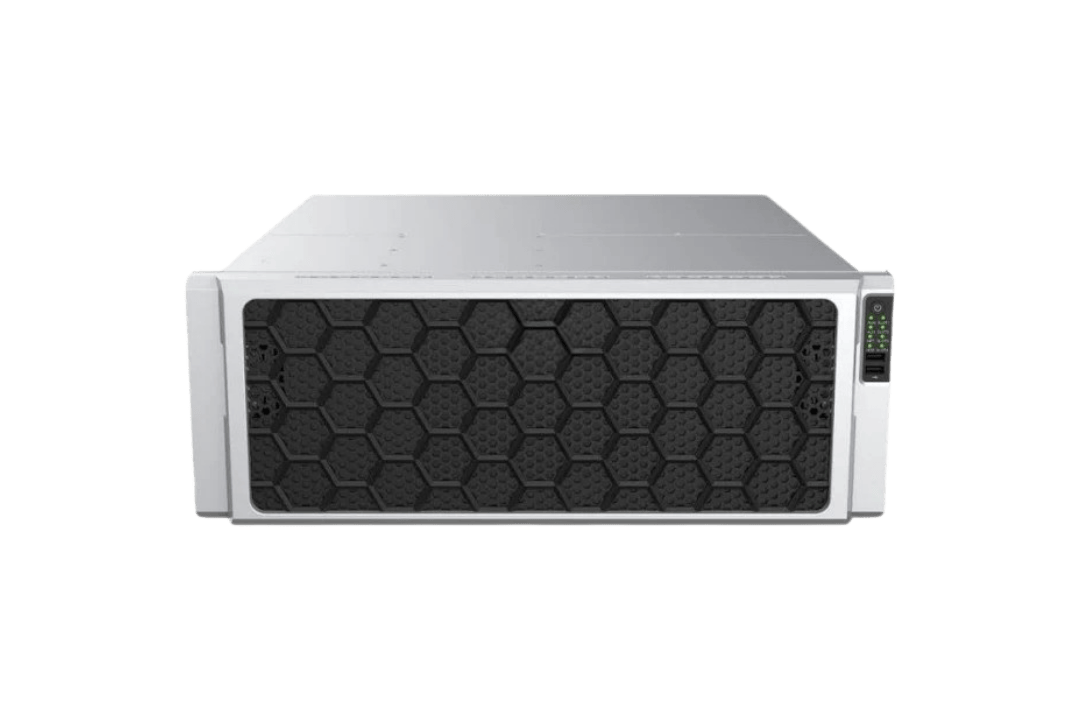

Max 128 channel IP cameras connection
Max 384Mbps incoming bandwidth
Up to 12Mp resolution preview& playback
1 VGA+2 HDMI
Support 16 hot-swap HDDs
Support RAID 0/1/5/6/10/50/60
Support N+M hot standby
Support iSCSI & Mini SAS to expand storage space
Compatible with Dahua SDK and seamless integrated to other platforms
Support Multi-brand network cameras: Dahua, Arecont Vision, AXIS, Bosch, Bric kcom, Canon, CP Plus, Dynacolor, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Video tec, Vivotek and etc.
ONVIF Version 2.4 conformance
Redundant power supply module adopted (DH-NVR616R-128 &DH-NVR616DR-128)
Front LCD display (DH-NVR616D-128 & DH-NVR616DR-128)
